Trap Installation:
- P180 P-Trap (original): 180mm
Water Consumption:
- WELS 4 Star, 4.5L/3L
- WELS licence No.: 1743

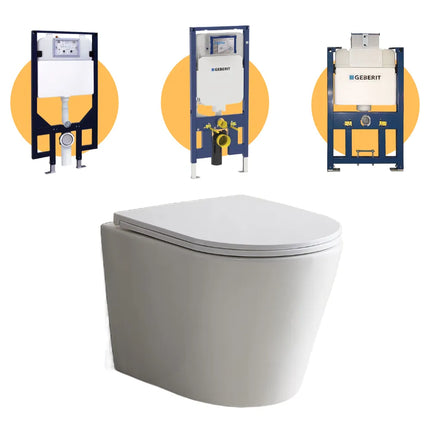

In-Wall Cistern Options:
R&T Framed In-Wall Cistern
- Model: IWC-WH8831
- 4-star WELS Rating
- 4.5 Litre Full Flush/ 3L Half Flush Dual Flush
- WELS Registration Number: 0313
- Watermark Certified (Standards AS/NSZ 6400)
- Strong, stable and easy to service
- Frame capacity: 300 Kg
- R&T wall hung concealed cisterns are installed behind the wall in the bathroom.
Geberit Duofix Sigma 8 In-Wall Cistern
- Model: 111.698.00.1
- WELS 4 Star, 4.5L/3L.
- The cistern’s tank is made of high-density, impact-resistant, one-piece blow moulded HDPE, guaranteeing leak-proof performance.
- The dual-flush plate allows easy access for servicing the internal components of the cistern.
- The operating pressure range is 10-1000kpa.
- The cistern is designed to fit standard 90mm walls.
- There are over 30 flush button designs available in Australia, providing freedom of choice.
- Compatible with all mechanical and pneumatic Sigma buttons available in Australia
- Options of mechanical, pneumatic or electronic buttons give greater design freedom.
- The Geberit Sigma8 Duofix for Wall Hung Pans can support a weight of up to 400kg and complies with AS 1172.1 standards.
Geberit Duofix Kappa Under Counter In-Wall Cistern
- Model: 111.263.00.1
- WELS 4 Star, 4.5L/3L.
- For installation in part or room-height prewall installations
- For wall-hung WCs with fastening distance 18–28 cm
- For dual flush
- For floor constructions 0–20 cm
- Concealed cistern with top or front actuation
- Water supply connection on the left
Cleaning & Care: Using a soft sponge or cloth for regular cleaning, wipe the product with warm soapy water, then rinse in clean water.
Warranty: 20 Years product replacement / 1-year parts and labour
Note: The colour discrepancy from the actual product colour may incur depending on the monitor resolutions and devices.
