Kubic Box Rim Wall Faced Floor Pan Toilet Ceramic Black 595X345X410

Description

Features:

  • Wall Faced Floor Pan
  • 4.5/3 Litres Dual flush
  • Trap-100: 100-155mm (Supplied)
  • UF Standard seat (Supplied)

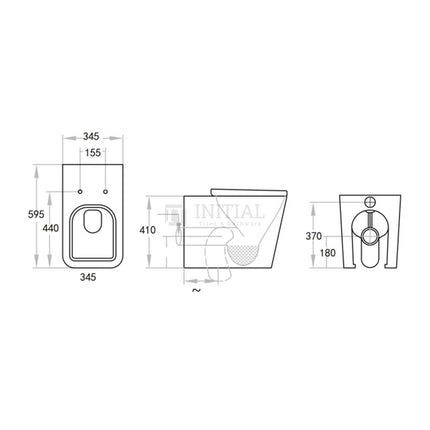

  • 595mm x 345mm x 410mm

      [SHORTDESCRIPTION]

      Premium grade Kubic series toilet pan in ceramic black with box rim system technology.

      Initial Tiles and Bathware provides you with the best options like box rim system.



      Optional:

      • Trap-60: 60-95mm
      • JT43: 150-190mm
      • P-Trap: 180mm



      Box Rim Flush Technology:

      A traditional boxed rim toilet pan is where there are a number of holes around the rim to release water when flushed.

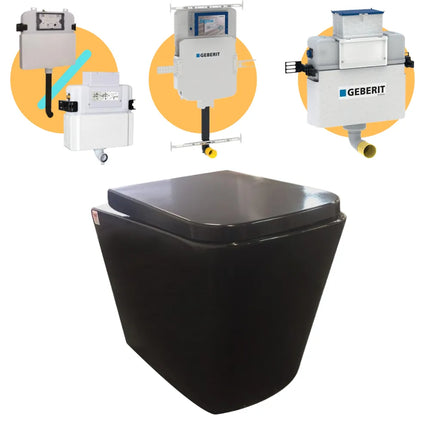

        In Wall Cistern

        R&T G30032

        • Suits floor mounted/wall-faced pans
        • Operating pressure 10-1000kpa
        • Fits 90mm stud wall
        • HDPE one piece tank
        • WELS 4 star rated, 4.5L/3L (3.3Laverage flush)




        R&T G3005

        • Frameless Top & Front operated conceal cistern
        • For wall faced floor pan
        • Preset flush volume
        • Full Flush 4.5-7L / Half Flush 3-5L
        • Actuator size: 210 x 140mm



        Geberit Sigma8

        • Suits floor mounted / wall-faced pans
        • Front Flush: 4.5/3L
        • Suits S or P trap BTW pans
        • HDPE one piece tank
        • Concealed cistern with front actuation
        • Fully insulated against condensation
        • Water supply connection on the top left
        • Flush bend fitted
        • Operating pressure 10-1000 kpa
        • Designed in Switzerland, made in Germany



        Geberit Kappa

        • Suits floor mounted / wall-faced pans
        • Top, front flush: 4.5/3L
        • Suits S or P trap BTW pans
        • Min H820, min cavity 175mm
        • Mechanical or pneumatic operation
        • Concealed cistern with top or front actuation
        • Designed for installation in part or room-height pre-wall installations
        • Fully insulated against condensation
        • Water supply connection on the left
        • Welded flush bend
        • Operating pressure 10-1000 kpa
        • Designed in Switzerland, made in Germany
        • Includes Sigma adaptor for Kappa Under-Counter cisterns, only for use with Sigma flush plate, must be installed at rough in





        Warranty:

        The Poseidon Warranty Guide can be viewed here



        Note:

        The colour discrepancy from the actual product colour may incur depending on the monitor resolutions and devices.

          Read more

          Kubic Box Rim Wall Faced Floor Pan Toilet Ceramic Black 595X345X410

          Product form

          SKU: BA1200023

          $560.00 $330.00

          Features: Wall Faced Floor Pan 4.5/3 Litres Dual flush Trap-100: 100-155mm (Supplied) UF Standard seat (Supplied) 595mm x 345mm x 410mm [SHORTDESCRIPTION]... Read more

          Free pickup in our shop(s)

            Description

            Features:

            • Wall Faced Floor Pan
            • 4.5/3 Litres Dual flush
            • Trap-100: 100-155mm (Supplied)
            • UF Standard seat (Supplied)
            • 595mm x 345mm x 410mm

                [SHORTDESCRIPTION]

                Premium grade Kubic series toilet pan in ceramic black with box rim system technology.

                Initial Tiles and Bathware provides you with the best options like box rim system.



                Optional:

                • Trap-60: 60-95mm
                • JT43: 150-190mm
                • P-Trap: 180mm



                Box Rim Flush Technology:

                A traditional boxed rim toilet pan is where there are a number of holes around the rim to release water when flushed.





                  In Wall Cistern

                  R&T G30032

                  • Suits floor mounted/wall-faced pans
                  • Operating pressure 10-1000kpa
                  • Fits 90mm stud wall
                  • HDPE one piece tank
                  • WELS 4 star rated, 4.5L/3L (3.3Laverage flush)




                  R&T G3005

                  • Frameless Top & Front operated conceal cistern
                  • For wall faced floor pan
                  • Preset flush volume
                  • Full Flush 4.5-7L / Half Flush 3-5L
                  • Actuator size: 210 x 140mm



                  Geberit Sigma8

                  • Suits floor mounted / wall-faced pans
                  • Front Flush: 4.5/3L
                  • Suits S or P trap BTW pans
                  • HDPE one piece tank
                  • Concealed cistern with front actuation
                  • Fully insulated against condensation
                  • Water supply connection on the top left
                  • Flush bend fitted
                  • Operating pressure 10-1000 kpa
                  • Designed in Switzerland, made in Germany



                  Geberit Kappa

                  • Suits floor mounted / wall-faced pans
                  • Top, front flush: 4.5/3L
                  • Suits S or P trap BTW pans
                  • Min H820, min cavity 175mm
                  • Mechanical or pneumatic operation
                  • Concealed cistern with top or front actuation
                  • Designed for installation in part or room-height pre-wall installations
                  • Fully insulated against condensation
                  • Water supply connection on the left
                  • Welded flush bend
                  • Operating pressure 10-1000 kpa
                  • Designed in Switzerland, made in Germany
                  • Includes Sigma adaptor for Kappa Under-Counter cisterns, only for use with Sigma flush plate, must be installed at rough in





                  Warranty:

                  The Poseidon Warranty Guide can be viewed here



                  Note:

                  The colour discrepancy from the actual product colour may incur depending on the monitor resolutions and devices.

                    Read more
