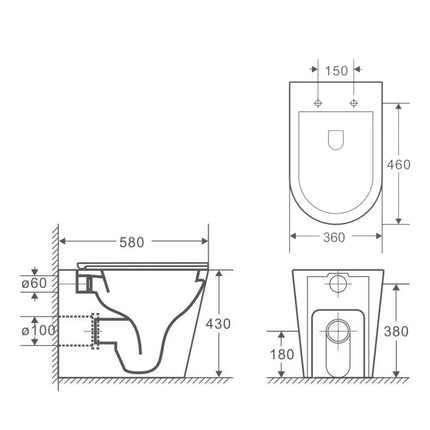

Rough-in available for either S-Trap or P-Trap:
- VB70 S-Trap (original): 100-145mm
- P180 P-Trap (optional): 180mm
Water Consumption:
- WELS 4 Star, 4.5L/3L
- WELS licence No.: 1743

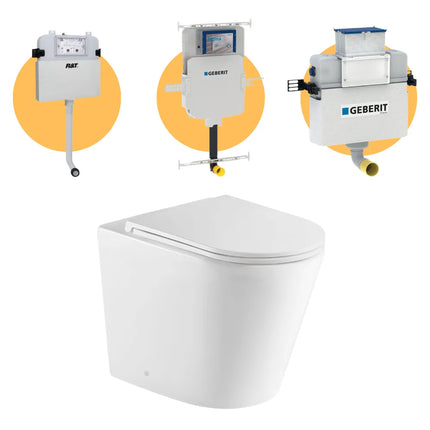

In-Wall Cistern Options:
R&T In-Wall Cistern
- Model: IWC-FP8832
- 4-star WELS Rating
- 4.5 Litre Full Flush/ 3L Half Flush Dual Flush
- WELS Registration Number: 0313
- Watermark Certified (Standards AS/NSZ 6400)
- Strong, stable and easy to service
Geberit Sigma 8 In-Wall Cistern
- Model: 109.795.00.1
- WELS 4 Star, 4.5L/3L.
- The cistern’s tank is made of high-density, impact-resistant, one-piece blow moulded HDPE, guaranteeing leak-proof performance.
- The dual-flush plate allows easy access for servicing the internal components of the cistern.
- Suitable for S or P trap back to toilet pans.
- The operating pressure range is 10-1000kpa.
- The cistern is designed to fit standard 90mm walls.
- There are over 30 flush button designs available in Australia, providing freedom of choice.
- Compatible with all mechanical and pneumatic Sigma buttons available in Australia
- Options of mechanical, pneumatic or electronic buttons give greater design freedom.
Geberit Kappa Under Counter In-Wall Cistern
- Model: 110.208.00.1
- WELS 4 Star, 4.5L/3L.
- For low height in wall or in vanity installations.
- Suits major back to wall pans.
- Top or front flush operation.
- Compatible with all mechanical and pneumatic Kappa buttons (separate service access required with pneumatic) and Sigma20, 21, 30 and 50 buttons (available in Australia) with adapter.
Cleaning & Care: Using a soft sponge or cloth for regular cleaning, wipe the product with warm soapy water, then rinse in clean water.
Warranty: 20 Years product replacement / 1-year parts and labour
